Hardware
IoT, Embedded, EDGE 디바이스 설계와 모듈 커스터마이징
키트와 모듈을 결합해 완제품 형태로 공급하고, 센서 입력과 디스플레이·모터·전력 제어까지 현장 요구에 맞게 구성합니다.

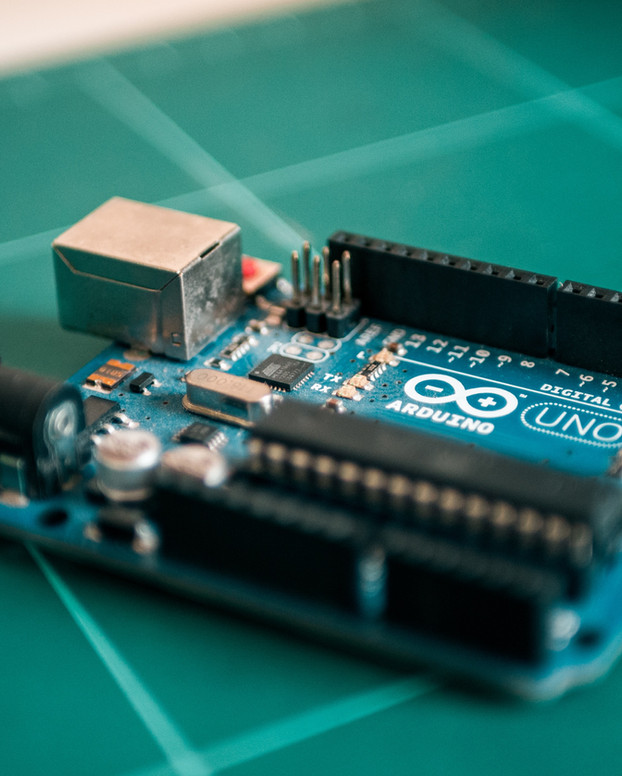

Raspberry / Arduino
빠르게 검증하고 현장에 맞게 패키징합니다.

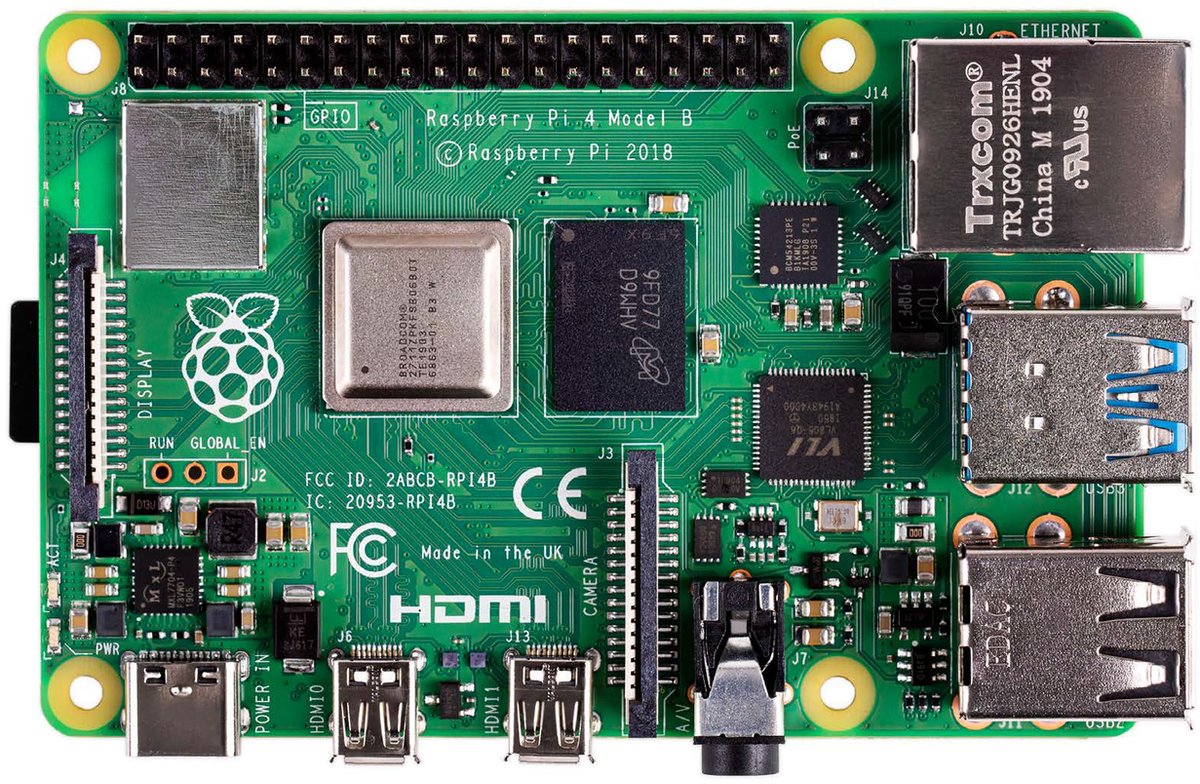

Raspberry Pi 4 Kit
Raspberry Pi 4 Model B with 1.5GHz 64-bit quad-core ARMv8 CPU
- Broadcom BCM2711, Quad core Cortex-A72 64-bit SoC @ 1.5GHz
- 1GB, 2GB or 4GB LPDDR4-3200 SDRAM
- 2.4GHz/5.0GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
- Gigabit Ethernet, USB 3.0 x 2, USB 2.0 x 2
- Raspberry Pi standard 40 pin GPIO header
- 2 x micro-HDMI ports, MIPI DSI display port, MIPI CSI camera port
- H.265 4kp60 decode, H264 1080p60 decode / 1080p30 encode
- Micro-SD card slot, 5V DC via USB-C or GPIO header
- Operating temperature: 0 to 50 degrees C ambient
- Custom module and custom case with ESD protection

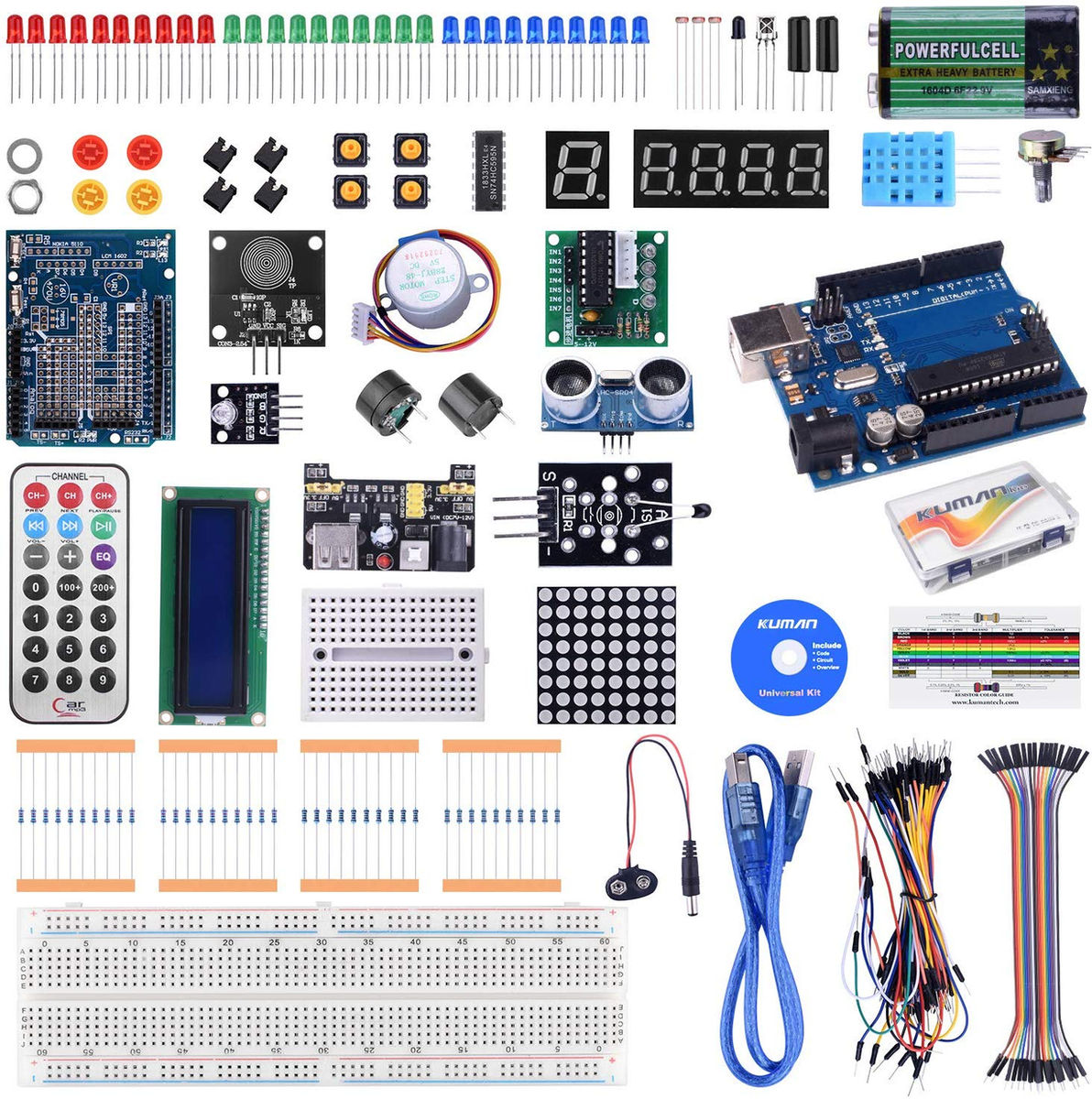

Arduino Kit
UCTRONICS Advanced Starter Learning Kit for Arduino UNO
- Kuman UNO R3 Development Board, USB cable, prototype extension board
- Mini breadboard, large breadboard, breadboard module, breadboard line
- 5V stepper motor, ULN2003 stepper motor driver board
- LEDs, vibration sensor, flame sensor, LM35 temperature sensor
- Infrared receiver, photoresistor, potentiometer, key switches
- Passive buzzer, active buzzer, remote control, 16 x 2 LCD
- HC-SR04 module, 8 x 8 dot matrix, 1 digit and 4 digit segment tubes
- IC 74HC595, battery holder, resistors, 9V battery, 40 pin header
- Thermistor module, touch sensor, CD with tutorial, plastic box

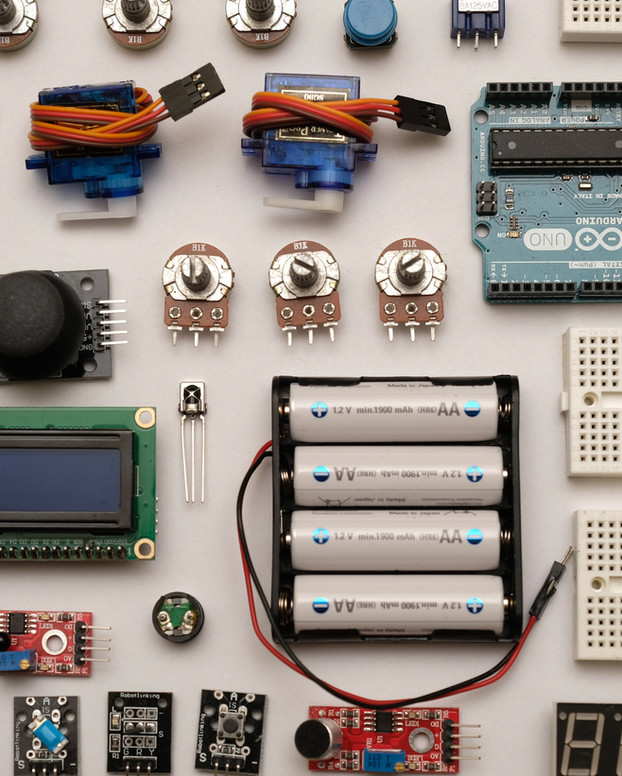

IO Modules
센서 입력과 장비 제어를 위한 모듈 구성

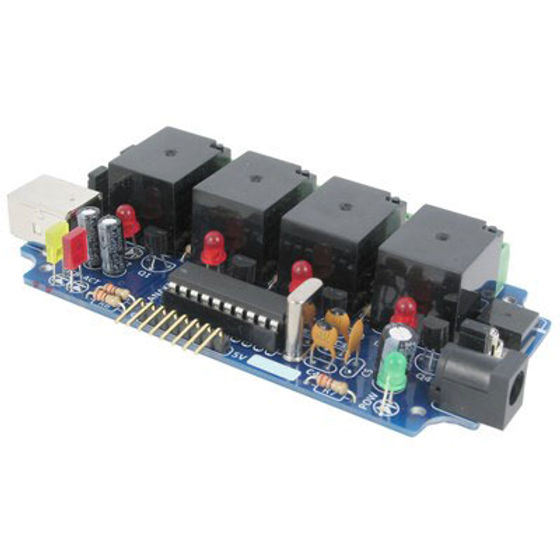

Relay Controller
- Supply voltage: 12V DC
- Number of Relays: 4
- Number of I/O Channels: 6
- Relay Rating: 10A / 110V AC or 24V DC
- I/O channels configurable as digital input/output, analog input or temperature sensor
- A/D Converter Resolution: 10-bit
- Compatible with Maxim/Dallas DS18B20 1-Wire Temperature Sensors
- Dimensions: 4.11" x 2.14"

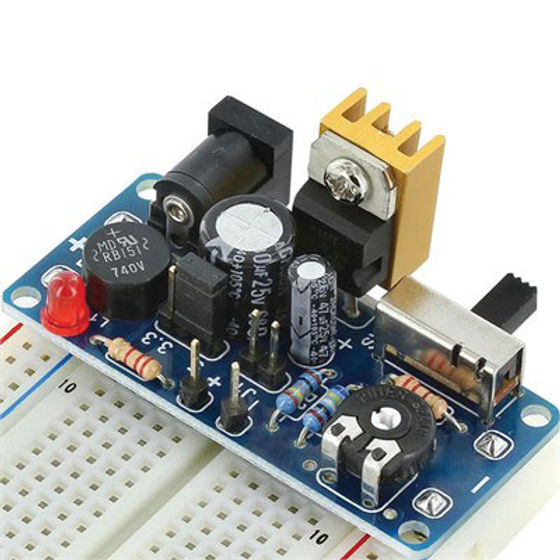

DC Power Supplies
- Supply voltage: 9 to 15V DC or 6 to 12V AC adapter
- Variable Mode: adjustable from 1.2 to 12V DC
- Fixed Mode: 3.3V or 5V DC
- Maximum output current: 300 mA
- Short-circuit protection
- Dimensions: 2.17" x 0.99"

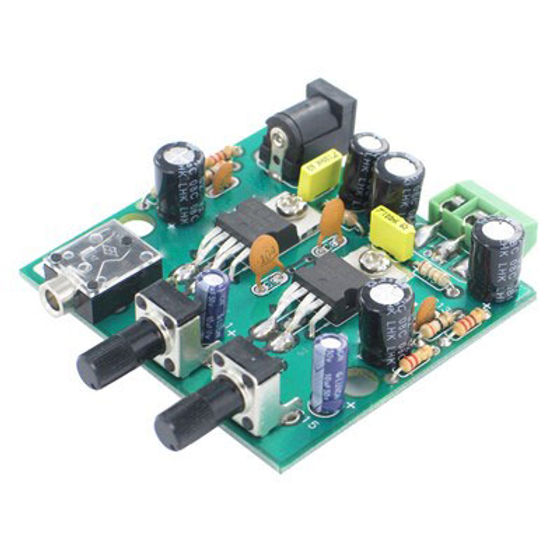

Audio Amplifiers
- Supply voltage: 8 to 16V DC / 0.5 to 1 A
- Based around two TDA2003 Integrated Circuit
- Music Power: > 5W @ 4 Ohm
- RMS Power: 3.5W @ 4 Ohm / 2W @ 8 Ohm
- Frequency response: 40 Hz to 15 KHz
- Includes volume controls and 3.5mm stereo input jack

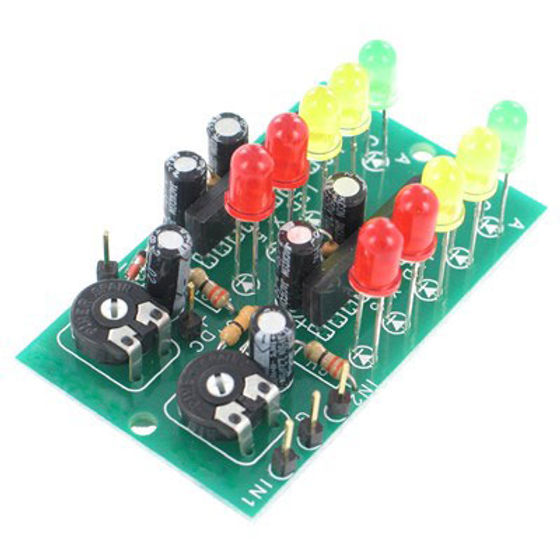

LED Blinkers
- Supply voltage: 5 to 14V DC / 200mA
- Input sensitivity: adjustable from approx. 75mV
- Based on two AN6884 Integrated Circuits
- Dimensions: 1.42" x 2.37"

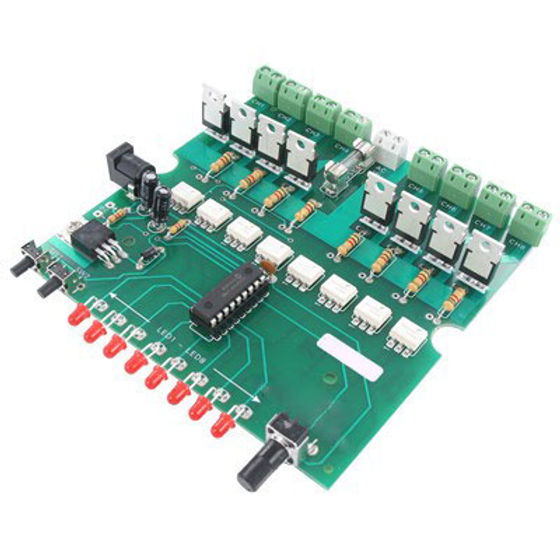

Color Organs
- Supply voltage: 6 to 24V DC / 150 mA
- 8 channels / 20 programs
- PIC Microcontroller with speed adjustment control
- Opto-isolated outputs
- Maximum current per channel: 1A Max.
- Dimensions: 4.80" x 4.79"

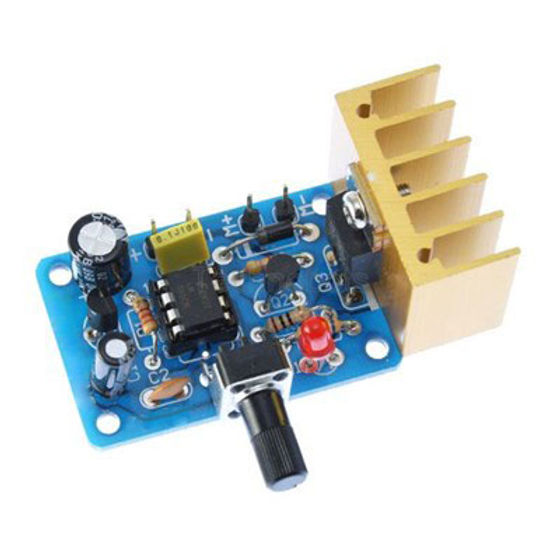

Motor Controllers
- Supply / load voltage: 6 to 16V DC
- Maximum continuous current: 5A @ 140 Hz
- Duty Cycle adjustable from 1 to 99%
- Frequency: approximately 140Hz
- Includes heatsink
- Dimensions: 1.77" x 1.18"

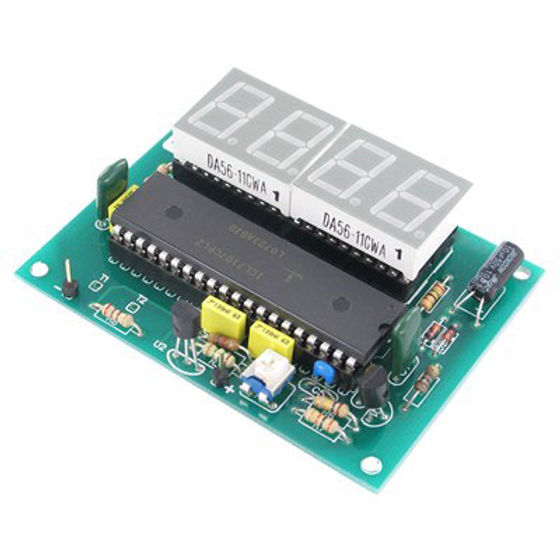

Thermometers
- Supply voltage: regulated 5V DC / 150mA
- DS18B20 temperature sensor
- 4-Digit 0.56" 7-segment display
- Degree Celsius or Degree Fahrenheit
- Temperature Range: -55°C to 125°C
- Resolution: ±0.5°C

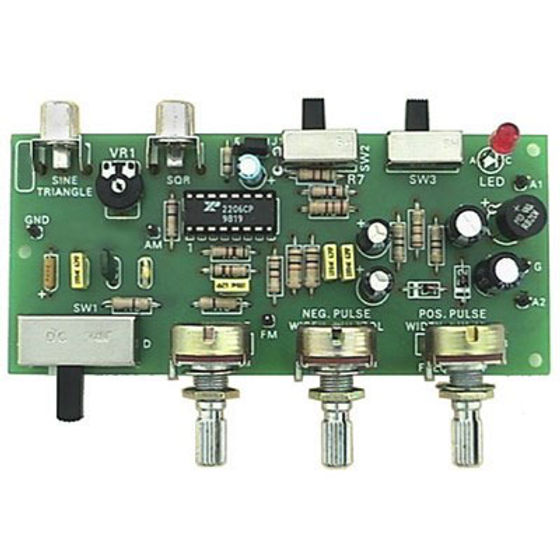

Signal Generators
- Supply voltage: 12V AC adapter or transformer
- Frequency range: approx. 10Hz to 200KHz
- Two RCA jack outputs: sine/triangle and square/pulse
- Amplitude and frequency controls for sine and triangle waveforms
- Square/Pulse maximum output amplitude: 12Vpp fixed
- Low sine wave distortion, typically 0.5%
